Zip Water Classic Plus HydroTap 140/75 G5 Boiling and Chilled
Zip HydroTap G5 Classic Plus Boiling, Chilled
Each Kit includes: 1 x Under Bench Command Centre, 1 x All In One Zip Tap, 1 x Filter
We stock a wide range of Zip models, so if you need any help or advice, please feel free contact our team and we’ll be happy to help!
- Capacity: Commercial
- Number of people: 40
- Boiling Cups per hour: 140
- Chilled Cups per hour: 75
- Chilled Litres per hour: 75
Choose from: DIY or Zip Professional Install at Office*
- *Please note Zip Installation covers on sink, or on font install, except for stone or granite worktops (additional cost based on location for ‘on font’ install on stone or granite worktop) UK Nationwide

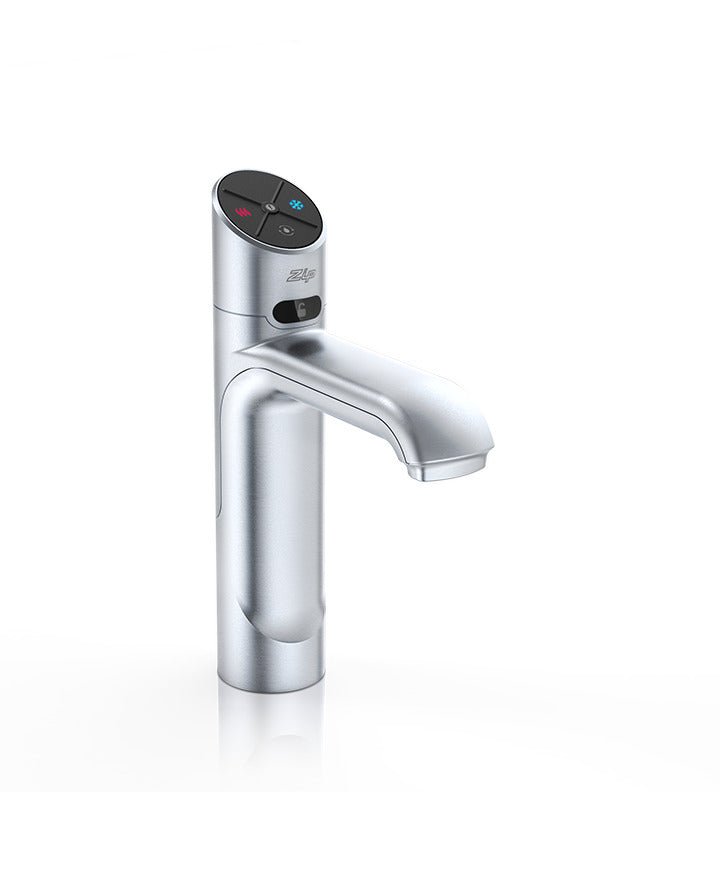

Available Finishes/Models: Bright Chrome, Brushed Chrome or Matt Black
Zip also strongly recommend purchasing these 2 Accessories alongside every HydroTap:
- if being fitted in a Hard Water area such as London: Zip Limescale Prevention Installation Filter Kit FL1500KIT (10,000 Litres)
- Plus Water Block Anti-Flood device
Why We Love It
The Classic Plus allows the convenience of both filtered boiling and filtered chilled for office or workplace. A stylish design in keeping with modern kitchens or water point areas.
The world’s most advanced drinking water system, the HydroTap dispenses your water needs from a single tap and under counter command centre. Dispensing only the purest tasting water, filtered to a market-leading 0.2 micron – 25 times more effective than a standard water filter jug.
To prioritise user safety at work, the HydroTap doesn’t splash or spit when dispensing water, and features two boiling water safety modes and a cool to touch tap. What’s more, the HydroTap features superior technology to conserve water while saving energy and time.
Specifications
MODEL |
MIXED HOT AND COLD |
FILTRATION 0.2 MICRON |
FONT | CO2 |
NOMINAL POWER RATING KW |
COMMAND CENTRE DIMENSIONS W X D X H |
H55799Z03UK | N | Y | Y | N | 2.15 kW @ 230V AC | 280mm x 478mm x 333mm |
Specification Type |
|
Product Name | HydroTap G5 Classic Plus boiling chilled 140/75 for work |
Capacity, Weights & Dimensions | |
Water functions | Boiling, Chilled |
Boiling capacity | 140 Cups per hour |
Chilled capacity | 75 Glasses per hour |
Unit dimension (W x D x H) | 280mm x 478mm x 333mm |
Product weight – empty / full | 22kg / 36kg |
Plumbing | |
Wholesome water inlet supply required | Cold Feed |
Supply pressure range | 1.7bar – 5bar |
Supply connection (hot & cold) | 1 x isolated 1/2″bsp BSP fitting (flexible supply hoses included) |
Installation | Must comply with current water supply regulations |
Electrical | |
Command centre power rating | 2.15 kW @ 230V AC |
Voltage supply | 13 amps |
Power supply requirements | 1 x 13amp socket outlet |
Cable length | 1.8m fitted with UK standard 3-pin plug |
Installation | Must comply with current IEE regulations |
Tap design | |
Style | HydroTap Classic Plus |
Finish | |
Installation hole cut size | 35mm |
Rotation | Fixed |
Disability options | No |
Country of Origin | Australia |
Command Centre | |
Factory temperature boiling | 98°C |
Factory temperature chilled | 6-10°C |
Filtration | 0.2 Micron Filter Cartridge |
Flow rate | 4.0 l/min |
Wholesome water supply requirements | Cold Feed |
Refrigerant | R290 |
Tank material | PPS |
Country of origin | Australia |
