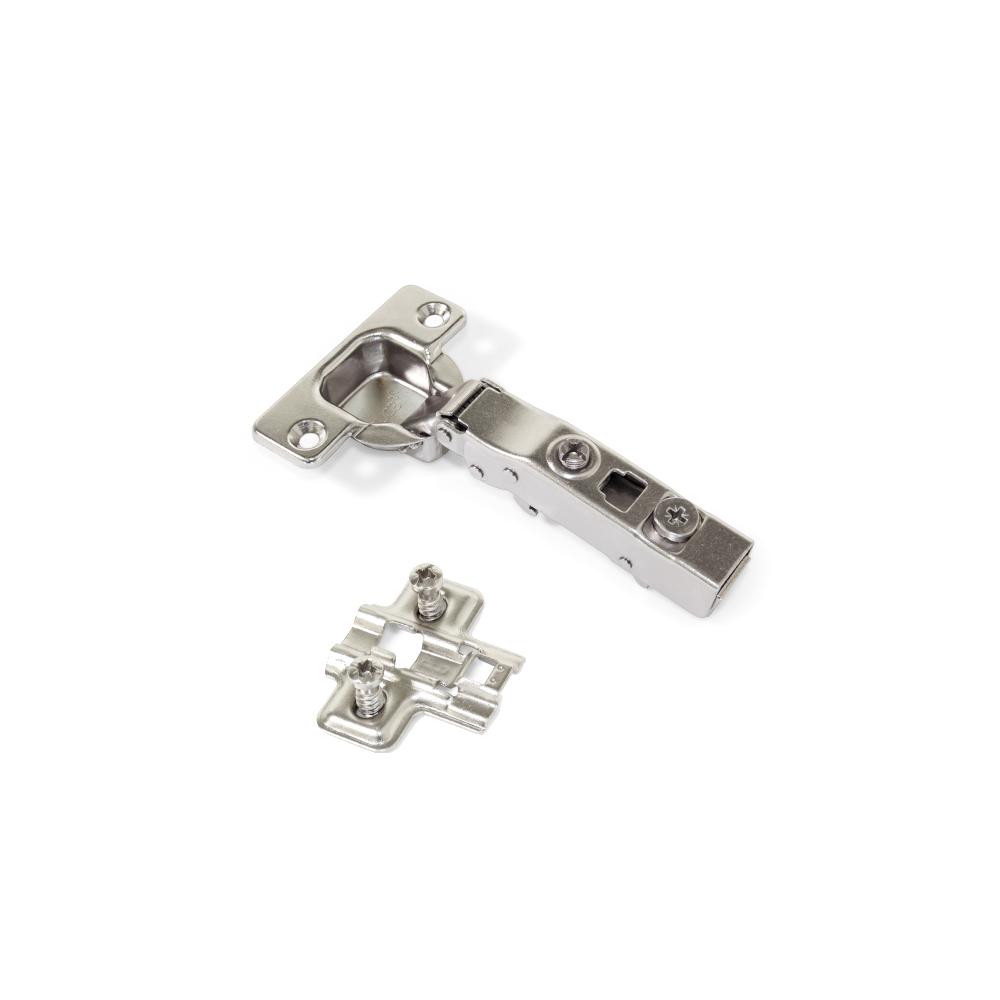

Unsprung 105 Degree 35mm Cup Full Overlay Hinge & Euro Plate
Straight hinge without spring to screw in the X91N series. This simple model offers an opening of 105 ° and it is recommended to use in conjunction with magnetic closures. It is coupled by means of an automatic clip to the clamping insert and has eccentric depth adjustment. This hinge is made of the best quality steel and has a very strong nickel-plated finish. It is recommended to use it on doors with a thickness of 14 to 24 mm and, when installing it, consider a 3 to 7 mm range when drilling the cup. The packaging presentation is 200 units.
