Billi Quadra Compact XL Boiling & Chilled Water Tap 904010
Billi Quadra XL 20 Boiling & Chilled Drinking Water Dispenser System Compact
Each Quadra Kit includes 1 x Under Counter Quadra Unit, 1 x All In One XL Levered Tap Dispenser, and 1 x Filter.
Model: Quadra Compact
Product Code: 904010
Boiling Water Delivery: 100 Boiling/150 chilled cups per hour
The Billi Quadra is an advanced instant boiling and chilled filtered drinking water system known for its exceptional energy efficiency, space-saving design, and user safety features. Key highlights of the Billi Quadra include:
-
Energy Efficiency:
- Unique Energy Reclaim System: This system significantly reduces energy consumption and the carbon footprint, making the Billi Quadra an eco-friendly option for both homes and offices. Billi Taps boast industry-leading sustainability credentials. Their superior tech and insulation properties combined offer efficiency that’s X50 that of a traditional hot water boiler tank. In addition, their ability to capture and recycle waste heat through the unique heat exchange water system ensures sizeable energy bill savings. Read full details of Billi’s Energy report here.
-
Space-Saving Design:
- Compact Under-Counter Installation: Despite its compact design, the Billi Quadra offers the largest capacity in the market, efficiently utilizing space without compromising on performance.
-
User Safety:
- SplashFree Technology: Ensures safe delivery of boiling water, minimising the risk of accidental splashes and burns.
- Adjustable Chilled Water Temperatures: Users can set their preferred temperature for chilled water, enhancing convenience and user satisfaction.
-
Aesthetic Appeal:
- Stylish Finishes: The system is available in a variety of finishes, including Chrome, Matte Black, (Special Finishes may be pre-ordered and are subject to longer waiting times – please request via our team – and include: Urban Brass, and Rose Gold, allowing it to blend seamlessly with different interior designs).
The Billi Quadra stands out as a perfect blend of functionality, safety, and elegance, making it an ideal choice for modern kitchens and workspaces
Dimensions
| Hot cups per hour | 100 |
| Height | 340mm |
| Width | 315mm |
| Depth | 365mm |
Tap Dispenser

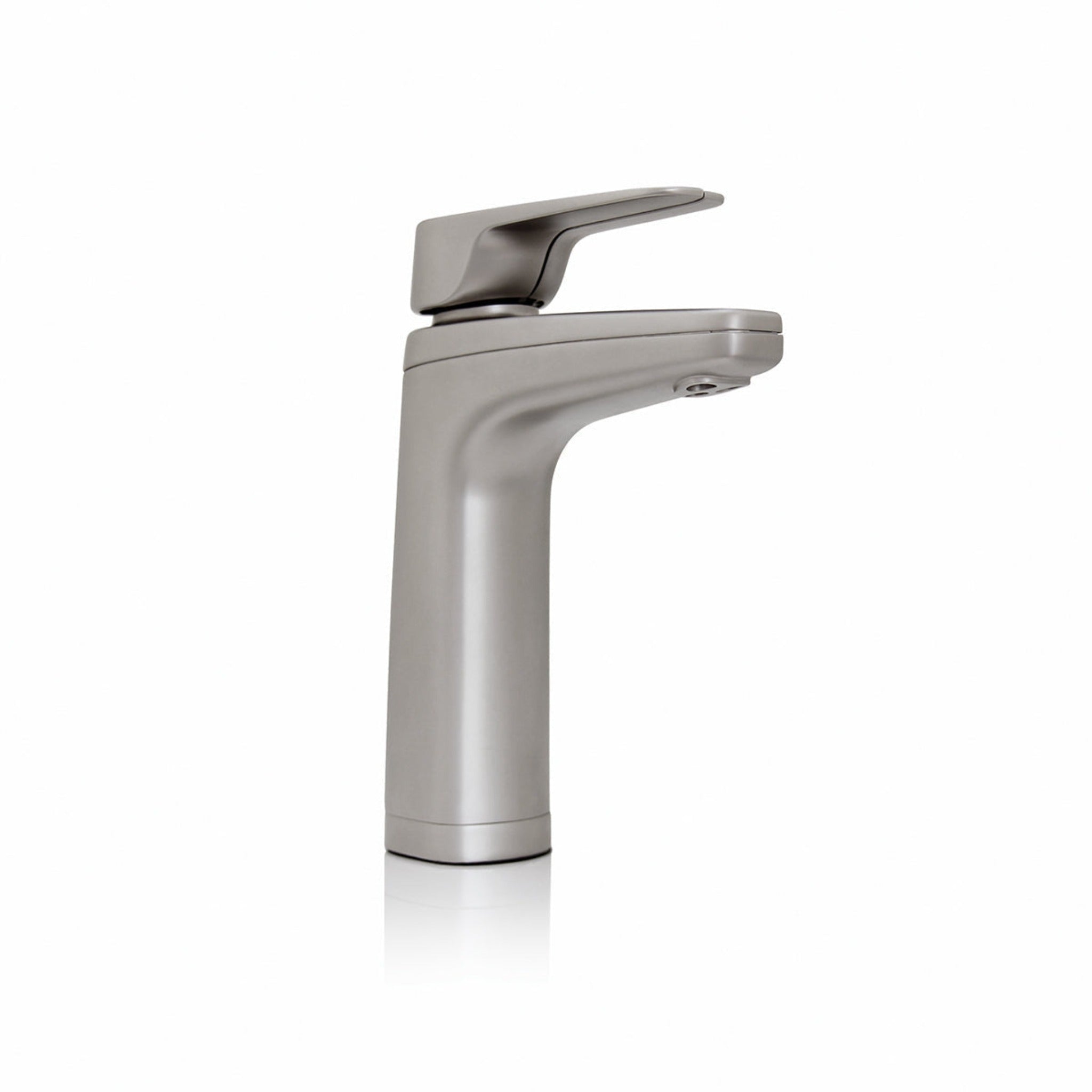

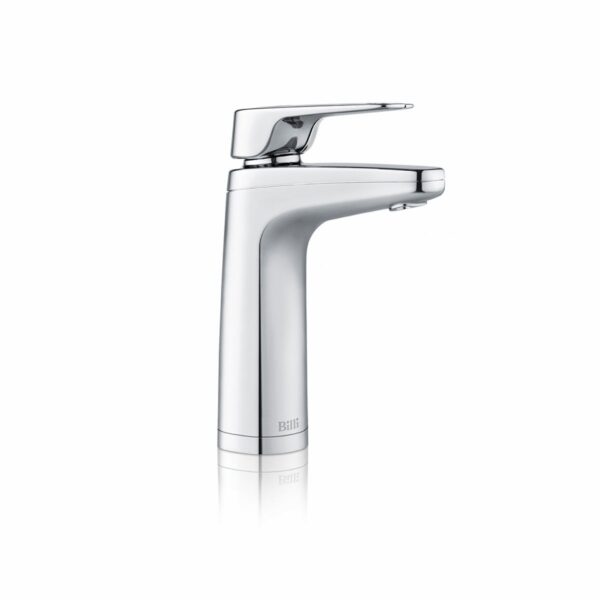

This listing includes the XL Levered handle tap, (for alternative dispensers including XT Touch, XR Remote, and Firewall Tower please contact our team). The XL Levered Dispenser has been engineered for high commercial use and meets the highest eco-building design standards – ensuring the ultimate sustainably conscious appliance. Its sophisticated style and easy operation are complemented by a simple-to-use safety switch.
Why We Love It
Eco-Intelligence Technology
Billi Taps boast industry-leading sustainability credentials. Their superior tech and insulation properties combined offer efficiency that’s X50 that of a traditional hot water boiler tank. In addition, their ability to capture and recycle waste heat through the unique heat exchange water system ensures sizeable energy bill savings. Read full details of Billi’s Energy report here.
Time Efficient
Raise productivity and limit office queues for Hot or Chilled drinking water – since filtered water is dispensed immediately. This dispenser has the fastest ‘cup rate’ in the market with filtered drinking water dispensed on demand.
Space-Saving
Designed to take up minimal under-counter space – the size of Billi units are uniquely compact – often half the size of competitors – especially valuable in premium city office space! No vent required.
Want to see how the Billi Tap dispenser will look in your home or office? Visualise your new Billi Tap now with the virtual 3D Configurator.
Water Options
- Chilled
- Hot Boiling
- Serves 1 – 20 users
- Premium filtration
- Adjustable chilled temperature
- 2 years parts & labour warranty – longer maintenance and service plans available – see below
Colour Finishes

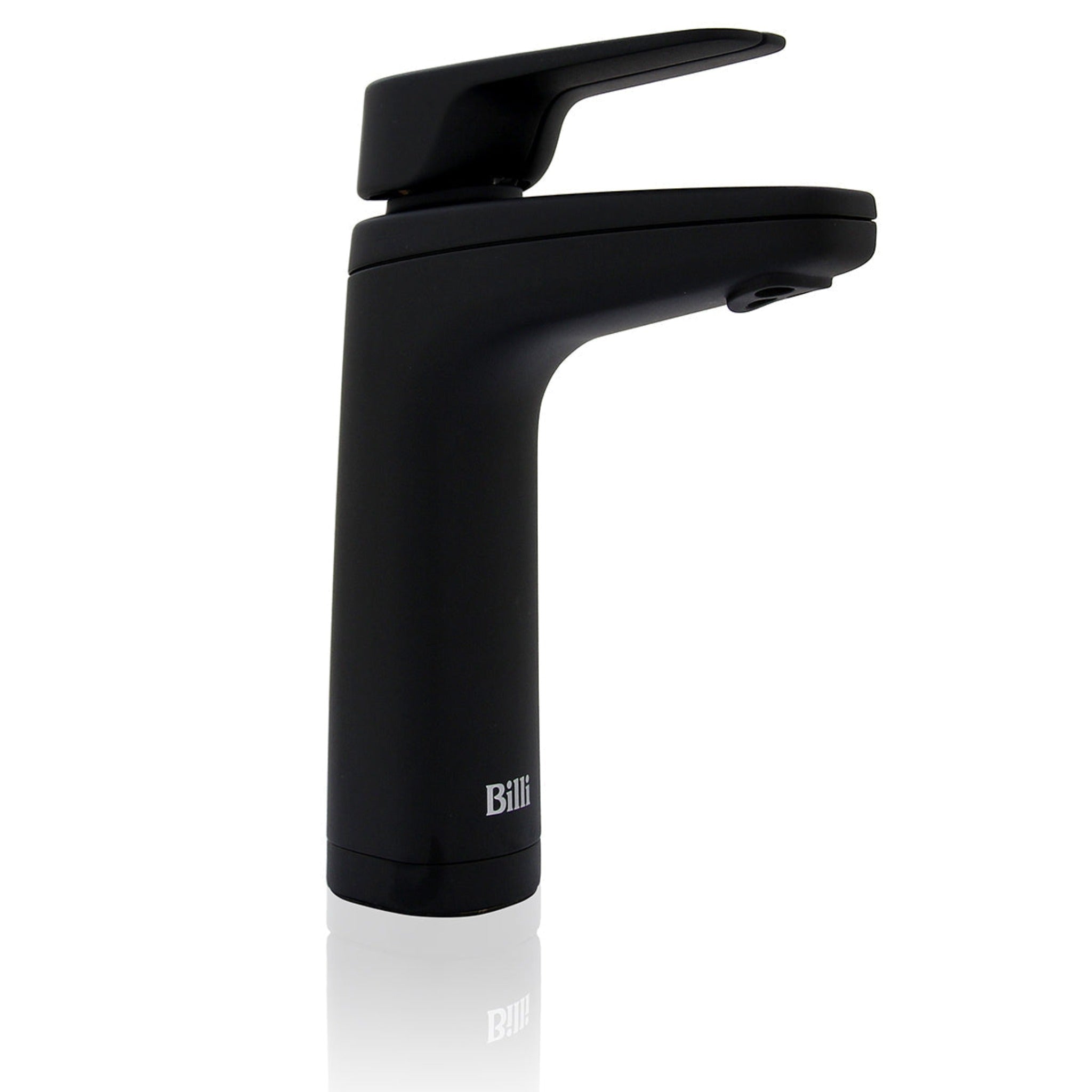

- Standard: Chrome, Brushed Chrome, Matt Black
- Special Finishes or custom personalised colours are available upon request (please contact our team for details – min 12 weeks lead time). Includes: Rose Gold, Gun Metal Grey, Urban Brass, Brushed Rose Gold, Matt White
Installation Options
If you select the Expert Installation Package (UK only) a trained Billi engineer will site visit, install and configure your Billi Tap to your kitchen area and bespoke requirements. An Aborted Install Charge of £165 will be charged upon cancellation /refund.
- Drainage Font Cut Out may be included free of charge (value £75) but must be requested upon purchase. Billi engineers only cut composite (granite, quartz, etc requires a contractor)
- Removal & Disposal of Existing Tap/System may be booked for an extra fee – please request via our team upon purchase
- NB Fonts & Risers are not required if fitted over a sink
Extended Maintenance/Service Packages
- Available to purchase directly from Billi here
Features
- Boiling & Chilled water on demand
- Unique energy reclaim system recycles waste heat energy from chilling water and reuses this to preheat the boiling water, allowing substantial electrical energy saving. Standby mode conserves energy with its auto switch off after 2 hours of inactivity.
- Low carbon footprint.
- No cupboard ventilation or cooling fan required
- SplashFree™ system electronically varies boiling water flow, adjusting to prevent splashing.

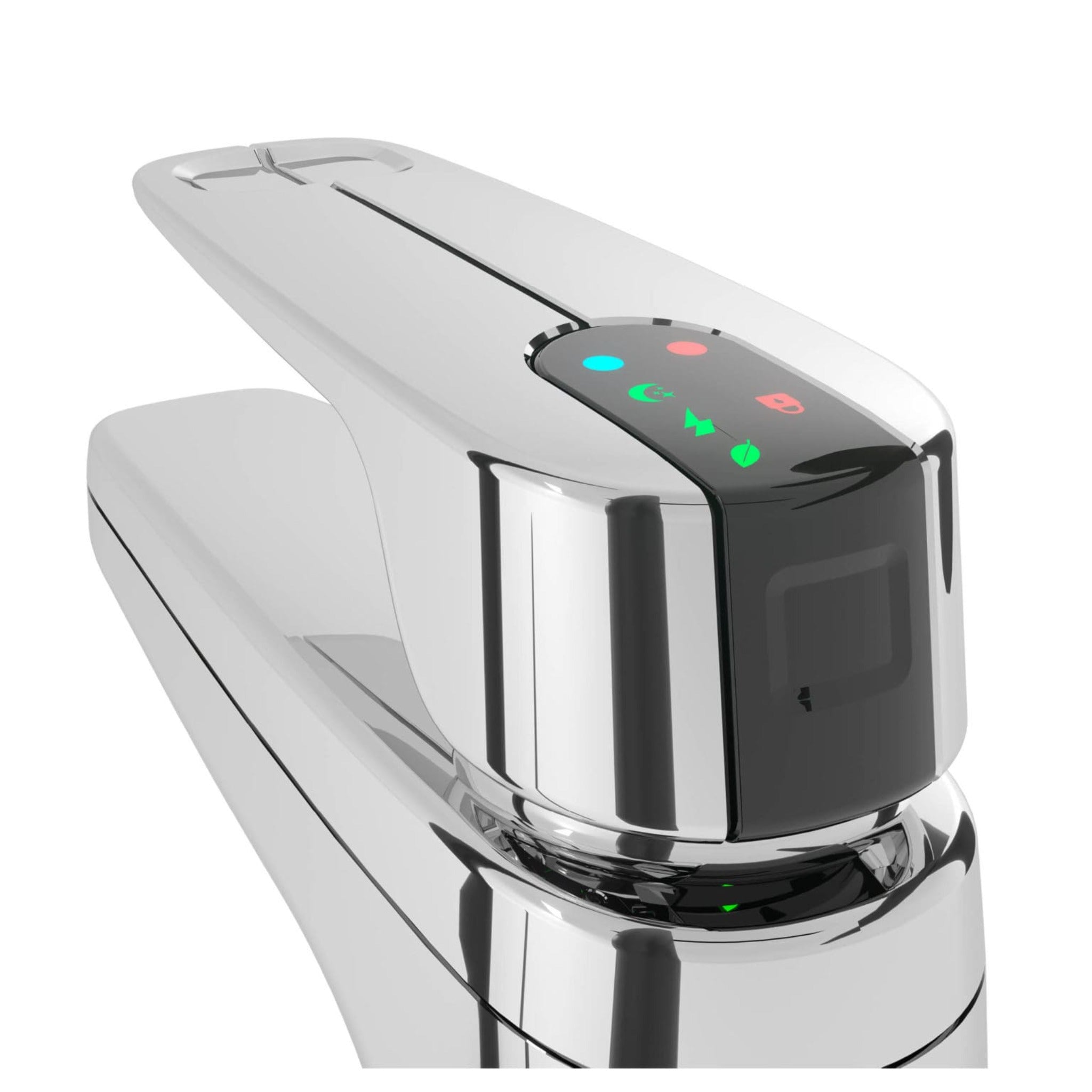

- Safety switch included.
- Boiling water is dispensed at a standard 98.5°C (lower temperatures may be set if required).
- Temperature control via the screen of the under-counter unit. The chilled water temperature can be set between 6°C and 15°C according to requirements.
- The filtration system removes harmful bacteria, unwanted sediment and chemicals, yet allows healthy minerals to flow through.
- Fibredyne™ technology prolongs filter life span, high flow rate, and low-pressure drop.
Compliance & Certifications:
- GreenTag Certified Gold Standard
-
BREEAM, LEED and SKA (Downloadable PDF)
- WaterMark™ and WRAS approved.
- Certified to AS3498 and AS/ NZS 4020.
*Which Quadra Model or Billi Tap is Right For Me?
Our team is on hand to arrange a personal consultation to help advise your perfect Billi solution for home or office: contact details here, and can even arrange London and showroom visits.
Our quick chart guide to Quadra Boiling And Chilled Systems is below:
| Product Code | Model | No. Persons | No. Boiling Cups/Hour |
No. Chilled Cups/Hour |
Current required Amps | Height mm | Width mm | Depth mm |
| 904010 | Quadra Compact | 20 | 100 | 150 | 13 | 340 | 365 | |
| 904040 | Quadra 440 | 40 | 150 | 175 | 13 | 340 | 465 | |
| 904060 | Quadra 460 | 60 | 180 | 175 | 13 | 340 | 465 | |
| 904100 | Quadra 4100 | 100 | 250 | 175 | 20 | 340 | 465 |
